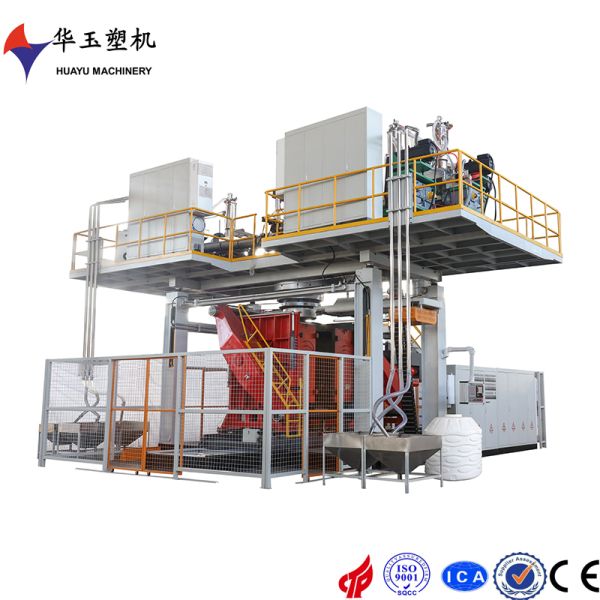

5000L 8-Layer Co-Extrusion Blow Molding Machine
Weifang Huayu Plastic Machinery, a leading innovator in plastic processing equipment, proudly presents its flagship 5000L 8-Layer Co-extrusion Blow Molding Machine. This state-of-the-art machine is engineered for the high-volume production of large, complex, and high-performance industrial containers, setting a new standard for capacity, precision, and material efficiency.
Unmatched Capacity and Layered Technology
The 5000L model represents the pinnacle of large-scale blow molding, capable of producing massive containers for sectors like chemicals, agriculture, and food storage. The core of its innovation lies in the 8-layer co-extrusion system. This advanced technology allows for the simultaneous combination of up to eight different materials or recycled layers into a single, superior container wall. This enables manufacturers to achieve unparalleled performance characteristics, such as exceptional barrier properties (against oxygen, moisture, or flavors), enhanced strength, chemical resistance, and significant cost savings by optimizing the use of recycled or regrind material in intermediate layers.
Precision Engineering for Superior Performance
Every component of the Huayu 5000L machine is built for durability, precision, and energy efficiency. The advanced PLC control system ensures consistent, repeatable production cycles and precise parison control. Its robust clamping unit delivers the immense force required for large-part molding, while the optimized screw design ensures efficient, homogeneous melting of various polymers. Designed for continuous, heavy-duty operation, this machine maximizes uptime and delivers a remarkable return on investment for large-scale industrial manufacturers.
Performance Parameters Table
| Feature / Parameter |
Specification |
| Model |
HY-5000L-8L |
| Max. Capacity (L) |
5000 |
| Number of Layers |
8 |
| Screw Diameter (mm) |
Custom configured (e.g., 120-150mm per extruder) |
| L/D Ratio |
30:1 |
| Clamp Force (kN) |
6000+ |
| Platen Size (mm) |
2500 x 1800 |
| Max. Mold Daylight (mm) |
2500 |
| Dry Cycle Time (s) |
90 |
| Drive System |
Servo Motor (Energy Efficient) |
| Control System |
Advanced PLC with HMI Touchscreen |
| Key Features |
IBC (Internal Bubble Cooling), Parison Programming, Multi-layer Feedback Control |
Application Areas:
- Industrial Chemical Drums & IBCs
- Agricultural Storage Tanks
- Large Food Grade & Water Storage Containers
- Specialty Packaging with High-Barrier Requirements
Empower your production with the scale and sophistication of the Huayu 5000L 8-layer system. Contact Weifang Huayu today to engineer the future of your large-container manufacturing.
